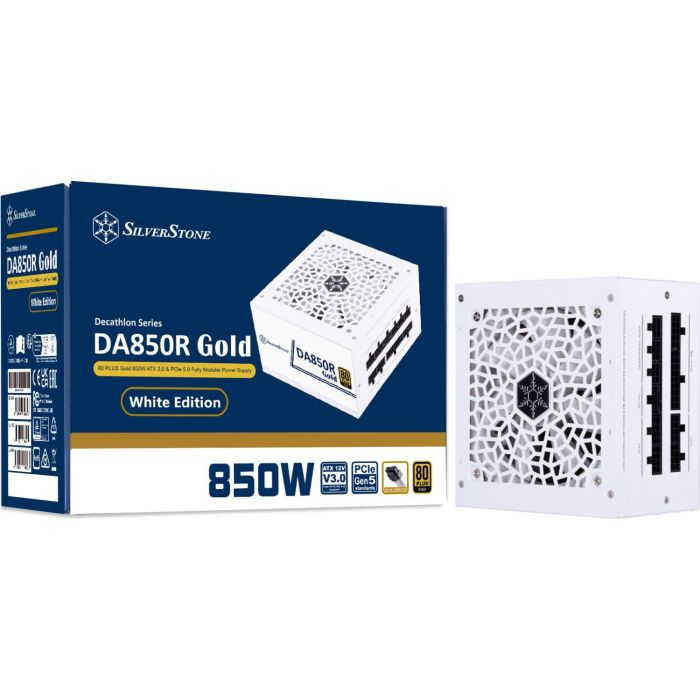

SilverStone Decathlon Gold Series DA850R-GMA Wit 850W
Op voorraad bij leverancier (2-5 werkdagen)
80 PLUS Gold efficiency certification
Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX 3.0 specification standard
Latest PCIe Gen 5 standard to support up to 2X power excursion
24/7 continuous power output with 50℃operating temperature
Silent running 120mm fan with advanced semi-fanless operation
Compact design with a 140mm depth for easy integration
Product Specifications
Product No. SST-DA850R-GMA-WWW (White)
Model (safety certification) SST-AX0850MCGD-D
Color White (lead-free paint)
Max. DC Output 850W
Power density 471W/L
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 70.8A 3A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% +5%-7% ±5% ±8%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V 100W
Combined +12V 850W
Input Voltage 90 ~ 264 Vrms
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC (PF>0.9 at full load)
Efficiency ≥87% & <89%
MTBF 100,000 hours
Operating temperature 0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12V-2x6 connector
8 x SATA connectors
4 x 4-Pin Peripheral connector
※ DA850R-GMA/ DA850R-GMA-WWW is not compatible with PP05-E and PP06 cables.
Cooling System Silent 120mm fan
Noise Level 0 dBA minimum
Certification 80 PLUS Gold
Form factor ATX (PS2)
Dimension 150mm (W) × 86mm (H) × 140mm (D)
Weight 2.13 kg
| EAN | 4710679816852 |
|---|---|
| Vendor ID | SST-DA850R-GMA-WWW |
| Energie Certificering | 80 Plus Gold |
| Modulair | Ja |
| Wattage | 800W - 900W |
| Aantal ATX 12V | 2 x 8 (4x4) polig |
| 12VHPWR | PCIe 5.0 12VHPWR |
| Aantal PCI-E | 4 x 6+2-polig |
| Sata connectors | 8 X Sata |
| Molex 4-pin | 4 x molex |
