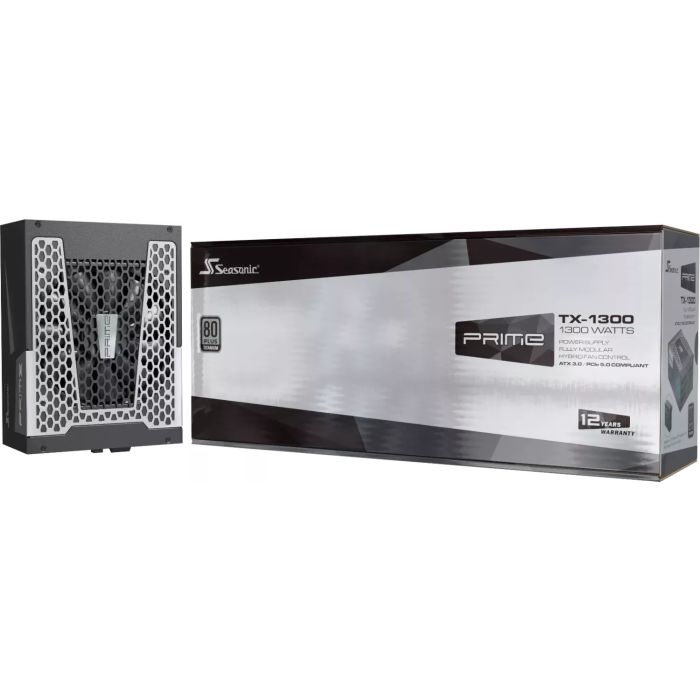

Seasonic Prime TX 1300W
€489,00
Op voorraad bij leverancier (2-5 werkdagen)
SKU
sk216829
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
SPECIFICATIONS
ATX3-PRIME-TX-1300
Technical Specifications
80PLUS® Titanium
Cybenetics Efficiency Level Titanium (See report)
Cybenetics Noise Level Lambda A++ (See report)
Form Factor Intel ATX 12 V
Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 135 mm
Fan Control Digital Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Individual Black Cables with Braided Pattern
Electrical Features Operating Temperature 0 - 50 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 15 - 8 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 108.3 A 0.5 A 3 A
125 W 1300 W 6 W 15 W
Total Continuous Power 1300 W
CABLES
PRIME-TX-1300
Cable type Connector(s) per cable Total Length (mm) Number(s) of cable(s) included
MB-610 MB (24/20 pins) 1 610 1
CPU-650 CPU (8/4 pins) 1 700 3
PCIe-750-1x PCIe (8/6 pins) 1 750 6
SATA-810-4x-90 SATA 4 950 4
SATA-700-2x-90 SATA 3.3 V 2 550 1
Molex-690-3x Molex 3 690 1
12VHPWR 12VHPWR 1 (12+4 Pins to 12+4 Pins) 750 1
EAN | 4711173878025 |
---|---|
Vendor ID | PRIME-TX-1300-ATX30 |
Energie Certificering | 80 Plus Titanium |
Modulair | Ja |
Wattage | 1300W - 1400W |
Aantal ATX 12V | 3 x 8 polig |
12VHPWR | PCIe 5.0 12VHPWR |
Aantal PCI-E | 6 x 6+2-polig |
Sata connectors | 18 X Sata |
Molex 4-pin | 3 x molex |
