Noctua NH-U9S
Niet voorradig ( neem contact op voor levertijd ! )

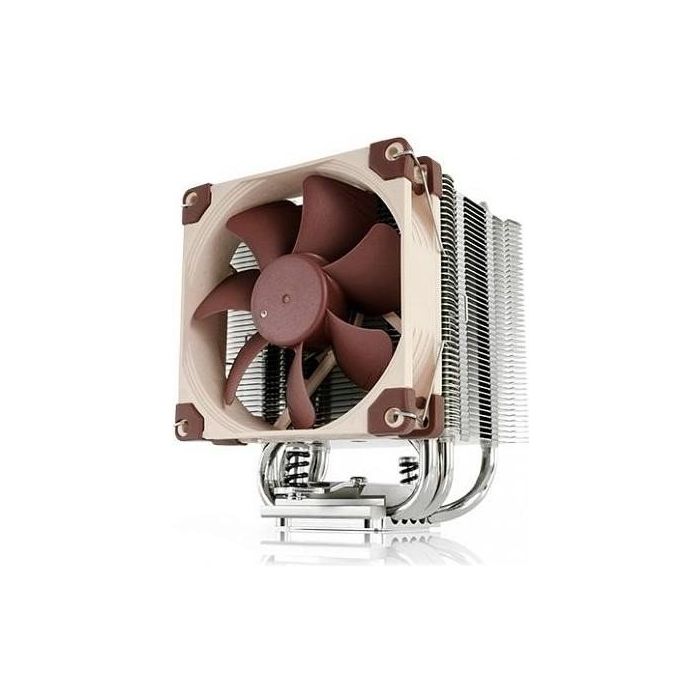

Continuing the renowned legacy of Noctua’s award-winning NH-U9 series, the NH-U9S is a premium quality quiet CPU cooler in classic 9cm size. Its asymmetrical design with 5 heatpipes not only provides even better cooling performance than the previous generation but also improves compatibility: Thanks to its 95x95mm footprint, the NH-U9S clears the RAM and PCIe slots on all Intel and most AMD based mainboards, including µATX and ITX. Combined with its 125mm height, this makes the NH-U9S a highly versatile solution with excellent case, RAM and PCIe compatibility. The included NF-A9 premium fan supports automatic speed control via PWM for outstanding quietness of operation and a second, optional NF-A9 fan can be added for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s provenNT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U9S is a deluxe choice through and through.
| Socket compatibility | Intel LGA2011-0 & LGA2011-3(Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required) | |
| Height (without fan) | 125 mm | |
| Width (without fan) | 95 mm | |
| Depth (without fan) | 68 mm | |
| Height (with fan) | 125 mm | |
| Width (with fan) | 95 mm | |
| Depth (with fan) | 95 mm | |
| Weight (without fan) | 524 g | |
| Weight (with fan) | 618 g | |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating | |
| Max. TDP | see TDP guide | |
| Fan compatibility | 92x92x25 | |
| Scope of Delivery |
|
|
| Warranty | 6 Years | |
Fan specifications |
||
| Model | Noctua NF-A9 PWM | |
| Bearing | SSO2 | |
| Max. Rotational Speed (+/- 10%) | 2000 RPM | |
| Max. Rotational Speed with L.N.A. (+/- 10%) | 1550 RPM | |
| Min. Rotational Speed (PWM, +/-20%) | 400 RPM | |
| Max. Airflow | 78,9 m³/h | |
| Max. Airflow with L.N.A. | 62,6 m³/h | |
| Max. Acoustical Noise | 22,8 dB(A) | |
| Max. Acoustical Noise with L.N.A. | 16,3 dB(A) | |
| Input Power | 1,2 W | |
| Voltage Range | 12 V | |
| MTBF | > 150.000 h | |
| EAN | 4716123315575 |
|---|---|
| Vendor ID | NH-U9S |
| Socket | Socket 1150, Socket 1151, Socket 1155/1156, Socket 115x/1200, Socket 1700, Socket 2011, Socket 2011-v3, Socket AM4, Socket AM5, Socket FM1, Socket FM2/FM2+ |
| Aantal Heatpipes | 5 Heatpipes |
| Type koeling | Lucht koeling |
