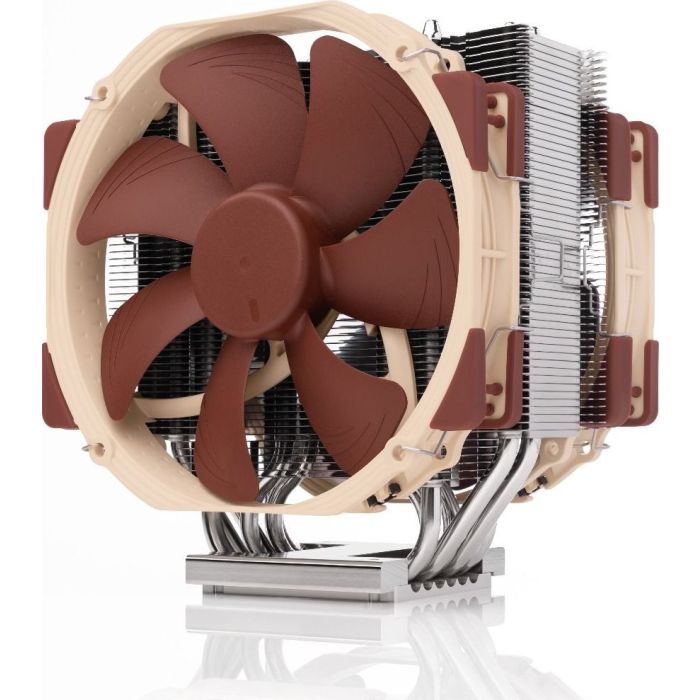

Noctua NH-U14S TR5-SP6

Notes and warnings Please note that the NH-U14S TR5-SP6 is a dedicated version for AMD sTR5/SP6 sockets. Due to its customised larger base, it cannot be used on smaller sockets and is incompatible with Noctua’s mounting kits for these sockets. Please refer to our socket compatibility overview for details.

Cooler Specification
Socket compatibility AMD sTR5, SP6
Height (without fan) 165 mm
Width (without fan) 150 mm
Depth (without fan) 52 mm
Weight (without fan) 797 g
Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 111 mm
Weight (with fan) 1136 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 179
Max. TDP see NSPR
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
2x NF-A15 HS-PWM premium fan
NA-YC1 4-pin PWM splitter cable
NT-H2 high-grade thermal compound (pre-applied)
SecuFirm2™ mounting kit for sTR5/SP6
NM-SMT4 mounting tool for mounting bracket installation
Warranty 6 Years

FAN Specification
Model 2x Noctua NF-A15 HS-PWM
Bearing SSO2
Max. rotational speed (+/- 10%) 1500 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1200 RPM
Min. rotational speed @ 20% PWM (+/-20%) 300 RPM
Max. airflow 140,2 m³/h
Max. airflow with L.N.A. 115,5 m³/h
Max. acoustical noise 24,6 dB(A)
Max. acoustical noise with L.N.A. 19,2 dB(A)
Airflow 140.2 m³/h
Airflow with L.N.A. 115.5 m³/h
Acoustical noise 24.6 dB(A)
Input power (typical) 1.056 W
Input power (max.) 1,56 W
Voltage range 12 V
MTTF > 150.000 h
