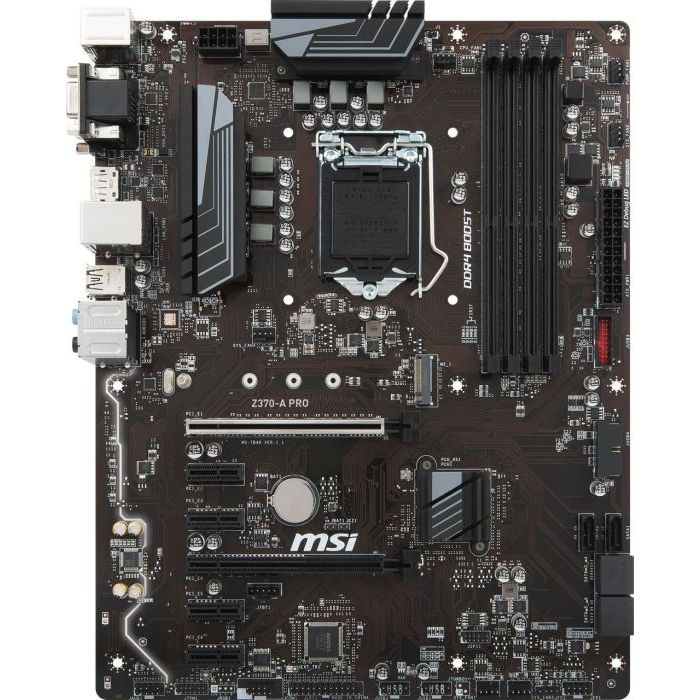

MSI Z370-A Pro

€119,00

End of life

SKU

sk214722

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Details

Supports 8th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 4000+(OC) MHz
DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.
AUDIO BOOST :Reward your ears with studio grade sound quality for the most immersive audio experience
MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire™
Heavy plated heatsinks：Leading heatsink design, for maximum cooling
EZ Debug LED: Easiest way to troubleshoot
Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
PCI-E Steel Armor：Protecting VGA cards against bending and EMI
X-Boost: Great tool to boost your USB & Storage performance
Double ESD Protection: Double layer grounding motherboard mounting holes
Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
VR Ready: Best virtual reality game experience without latency, reduces motion sickness

CPU

• Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset

• Intel® Z370 Chipset

Main Memory

• 4 x DDR4 memory slots, support up to 64GB
• Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz*
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.

Slots

• 1 x PCIe 3.0 x16 slot (PCI_E1, supports x16 mode)
• 1 x PCIe 3.0 x16 slot (PCI_E4, supports x4 mode)
• 4 x PCIe 3.0 x1 slots

Multi-GPU

• Supports 2-Way AMD® CrossFire™ Technology

Onboard Graphics

• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x DisplayPort, supports a maximum resolution of 4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz, 1920x1200@60Hz

Storage

• Intel® Z370 Chipset
• 6 x SATA 6Gb/s ports*
• 1 x M.2 slot (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices
- Intel® Optane™ Memory Ready**
• Supports Intel® Smart Response Technology for Intel Core™ processors

* The SATA1 port will become unavailable when M.2 SATA SSD has been installed in M.2 slot.
** Please refer to page 87 for Intel® Optane™ Memory Configuration.

RAID

• Intel® Z370 Chipset
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• Intel® Z370 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

• Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio

LAN

• 1 x RTL8111H Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Thunderbolt Add-on Card Connector
- 1 x Clear CMOS jumper

Back Panel I/O Ports

- 1 x PS/2 mouse & keyboard combo port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x VGA port
- 1 x DVI-D port
- 1 x DisplayPort
- 1 x LAN (RJ45) port
- 2 x USB 2.0 ports
- 6 x audio jacks

Dimension

• 12.0 in. x 8.9 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

Mounting

• 9 mounting holes

Meer informatie

Meer informatie
EAN	4719072540395
Vendor ID	7B48-001R
Voorraad status	End of life
Form Factor	ATX
Socket	Intel 1151-v2
Type Geheugen	DDR4
PCIe 3.0	2 sloten
PCIe 4.0	Nee
VGA onboard	Ja, via processor
SLI / Crossfire	Crossfire compatible
Aantal sata poorten	6 poorten
M.2-Slot	1x
USB 3.0	4X USB 3.0
USB 3.1	Nee
Bluetooth/Wifi	Nee
