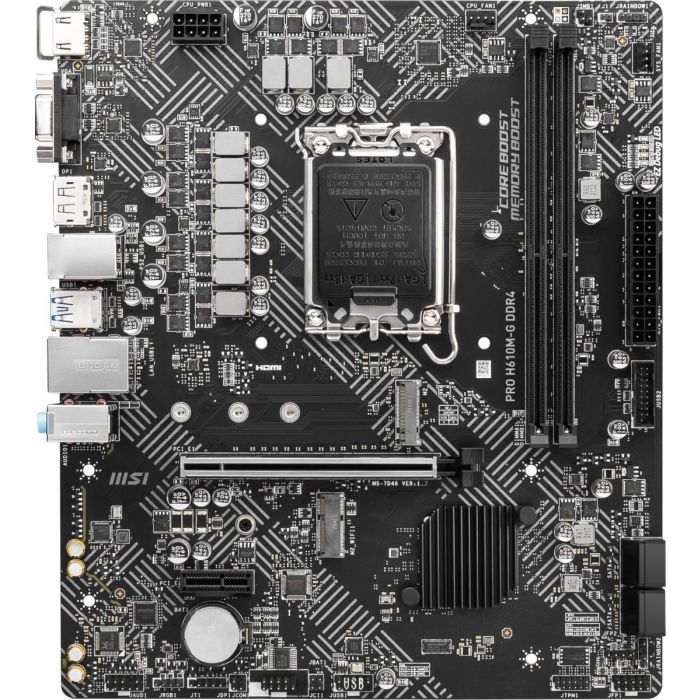

MSI PRO H610M-G DDR4
€87,00
Op voorraad bij leverancier (2-5 werkdagen)
SKU
400354
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
PROCESSOR
Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1700
- Please go to www.msi.com to get the newest support status as new processors are released.
CHIPSET
Intel® H610 Chipset
MEMORY
- 2x DDR4 memory slots, support up to 64GB1
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT
- 1x PCIe x16 slot (From CPU)
- Supports up to PCIe 4.0 x16
- 1x PCIe x1 slot
- Supports PCIe 3.0 x1
- 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
ONBOARD GRAPHICS
- 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2
- 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1
- x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
SATA PORTS
- 4x SATA 6Gb/s ports1
- * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD SLOT
- 1x M.2 slot (Key M, from chipset)1
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports Intel® Smart Response Technology for Intel Core™ processors
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
USB
Intel® H610 Chipset
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
AUDIO
Realtek® ALC892/ ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Intel® I219V 1Gbps LAN controller
POWER CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
FAN CONNECTORS
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
SYSTEM CONNECTORS
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
JUMPERS
- 1x Clear CMOS jumper
LED FEATURES
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LED
BACK PANEL PORTS
- HDMI
- VGA
- DisplayPort
- Keyboard/Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- LAN port
- Audio connector
- USB 2.0
DIMENSIONS
- mATX Form Factor
- 9.61 x 8.31 in. (24.4 cm x 21.1 cm)
OPERATING SYSTEM
Support for Windows® 11 64-bit
| EAN | 4719072925024 |
|---|---|
| Vendor ID | 7D46-009R |
| Form Factor | Micro-ATX |
| Socket | Intel 1700 |
| Type Geheugen | DDR4 |
| PCIe 3.0 | Nee |
| PCIe 4.0 | 1x |
| PCIe 5.0 | Nee |
| VGA onboard | Ja, via processor |
| SLI / Crossfire | Geen SLI/Crossfire |
| Aantal sata poorten | 4 poorten |
| M.2-Slot | 1x |
| USB 3.0 | 2X USB 3.0 |
| Bluetooth/Wifi | Nee |
| Thunderbolt | Nee |
