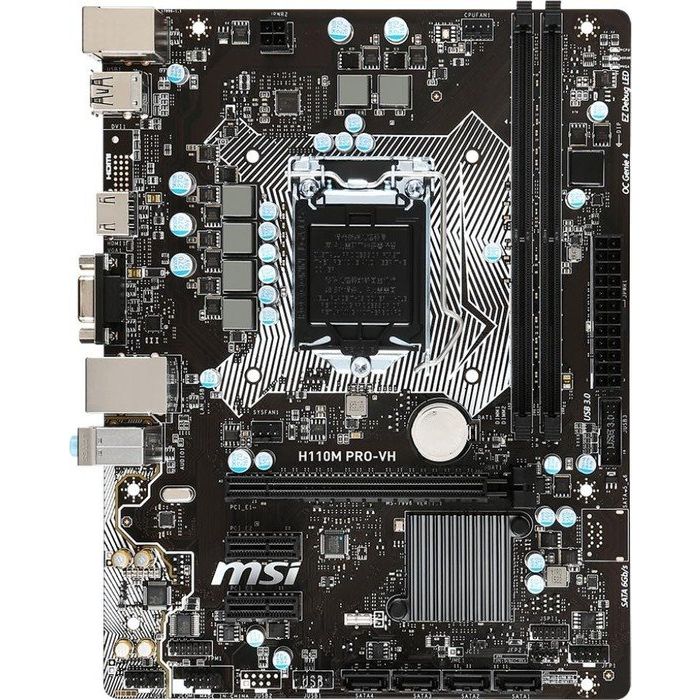

MSI H110M PRO-VH

€78,00

End of life

SKU

sk214222

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Details

Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
Supports DDR4-2133 Memory
DDR4 Boost: Give your DDR4 memory a performance boost
USB 3.1 Gen1 + SATA 6Gb/s
VGA Armor: Reinforced Armor slot
Click BIOS: Secure and Reliable UEFI BIOS solution
Audio Boost: Reward your ears with studio grade sound quality
Military Class 4: Top Quality & Stability
Guard-Pro: Improved Protection and Power Efficiency
EZ Debug LED: Easiest way to troubleshoot
Overvoltage Protection:Prevent Unforeseen Damage
4K UHD Support: Ultra-high Definition Visual Experience
Intel® SBB Support: Improves Productivity, Management and Security
WHQL CERTIFIED.WINDOWS 10 READY.

CPU

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® H110 Chipset

Main Memory

• 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports Non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs
* DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel® chipset limitation
* Please refer to Compatibility reports for more information of compatible memory.

Slots

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slots

Onboard Graphics

• 1 x HDMI™ ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

On-Board SATA

• Intel® H110 Chipset
• 4 x SATA 6Gb/s ports

USB

• Intel® H110 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)

Audio

• Realtek® ALC887 Codec
• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek RTL8111H Gigabit LAN controller

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.1 Gen1 ports
- 1 x HDMI™ port
- 1 x VGA port
- 1 x LAN (RJ45) port
- 3 x audio jacks

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Serial Port connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

Dimension

• 9.3 in. x 7.1 in. (23.5 cm x 18.0 cm) Micro-ATX Form Factor

Mounting

• 6 mounting holes

Meer informatie

Meer informatie
EAN	4719072421755
Vendor ID	7996-008R
Voorraad status	End of life
Form Factor	Micro-ATX
Socket	Intel 1151
Type Geheugen	DDR4
PCIe 3.0	1 slot
PCIe 4.0	Nee
VGA onboard	Ja, via processor
SLI / Crossfire	Geen SLI/Crossfire
Aantal sata poorten	4 poorten
M.2-Slot	Nee
USB 3.0	2X USB 3.0
USB 3.1	Nee
Bluetooth/Wifi	Nee
