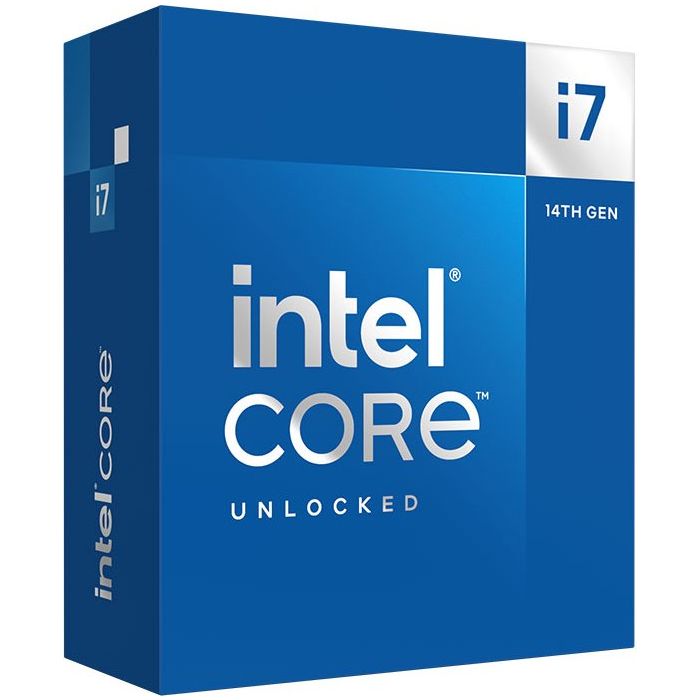

Intel Core i7-14700K / 3.5 GHz

Essentials
Product Collection Intel® Core™ i7 Processors (14th gen)

Code Name Products formerly RAPTOR LAKE

Vertical Segment Desktop

Processor Number i7-14700K

Lithography Intel 7

Use Conditions PC/Client/Tablet, Workstation

CPU Specifications
Total Cores 20

# of Performance-cores 8

# of Efficient-cores 12

Total Threads 28

Max Turbo Frequency 5.6 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency ‡5.6 GHz

Performance-core Max Turbo Frequency 5.5 GHz

Efficient-core Max Turbo Frequency 4.3 GHz

Performance-core Base Frequency 3.4 GHz

Efficient-core Base Frequency 2.5 GHz

Cache 33 MB Intel® Smart Cache

Total L2 Cache 28 MB

Processor Base Power 125 W

Maximum Turbo Power 253 W

Supplemental Information
Marketing Status Launched

Launch Date Q4'23

Embedded Options Available No

Memory Specifications
Max Memory Size (dependent on memory type) 192 GB

Memory TypesUp to DDR5 5600 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels 2

Max Memory Bandwidth 89.6 GB/s

ECC Memory Supported ‡Yes

GPU Specifications
Processor Graphics ‡Intel® UHD Graphics 770

Graphics Base Frequency 300 GHz

Graphics Max Dynamic Frequency 1.6 GHz

Graphics Outpute DP 1.4b, DP 1.4a, HDMI 2.1

Execution Units 32

Max Resolution (HDMI)‡4096 x 2160 @ 60Hz

Max Resolution (DP)‡7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡5120 x 3200 @ 120Hz

DirectX* Support 12

OpenGL* Support 4.5

OpenCL* Support 3.0

Multi-Format Codec Engines 2

Intel® Quick Sync Video Yes

Intel® Clear Video HD Technology Yes

# of Displays Supported ‡4

Device ID0xA780

Expansion Options
Direct Media Interface (DMI) Revision4.0

Max # of DMI Lanes 8

Scalability1S Only

PCI Express Revision 5.0 and 4.0

PCI Express Configurations ‡Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes 20

Package Specifications
Sockets Supported FCLGA1700

Max CPU Configuration 1

Thermal Solution Specification PCG 2020A

TJUNCTION 100°C

Package Size 45.0 mm x 37.5 mm

Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.0

Intel® Thread Director Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes

Intel® Speed Shift Technology Yes

Intel® Turbo Boost Max Technology 3.0 ‡Yes

Intel® Turbo Boost Technology ‡2.0

Intel® Hyper-Threading Technology ‡Yes

Intel® 64 ‡Yes

Instruction Set 64-bit

Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States Yes

Enhanced Intel SpeedStep® Technology Yes

Thermal Monitoring Technologies Yes

Intel® Volume Management Device (VMD) Yes

Security & Reliability
Intel® Standard Manageability (ISM) ‡Yes

Intel® Control-Flow Enforcement Technology Yes

Intel® AES New Instructions Yes

Secure Key Yes

Intel® OS Guard Yes

Execute Disable Bit ‡Yes

Intel® Boot Guard Yes

Mode-based Execute Control (MBEC) Yes

Intel® Virtualization Technology (VT-x) ‡Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes

Intel® VT-x with Extended Page Tables (EPT) ‡Yes
