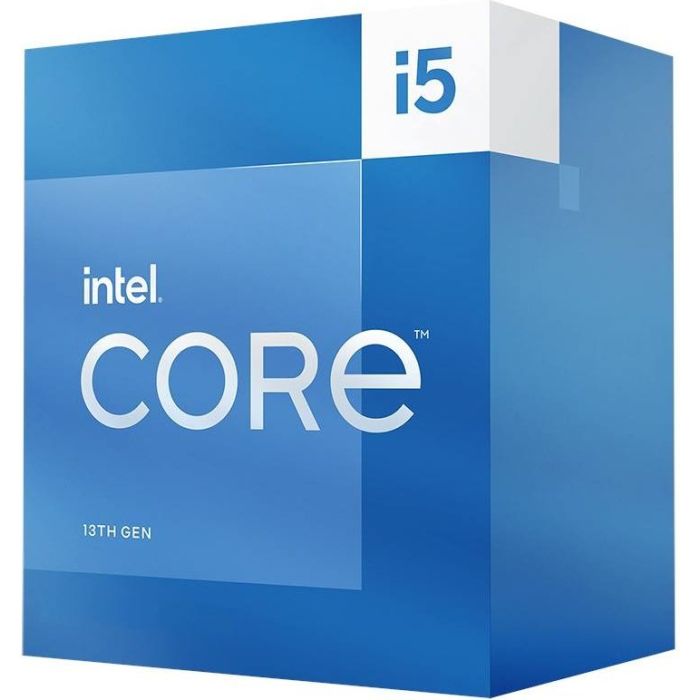

Intel Core i5-13500 / 2.5 GHz

Product Collection13th Generation Intel® Core™ i5 Processors
Code NameProducts formerly Raptor Lake
Vertical SegmentDesktop
Processor Number i5-13500
Lithography Intel 7
Use Conditions PC/Client/Tablet, Workstation
CPU Specifications
Total Cores 14
# of Performance-cores6
# of Efficient-cores8
Total Threads 20
Max Turbo Frequency 4.80 GHz
Performance-core Max Turbo Frequency 4.80 GHz
Efficient-core Max Turbo Frequency 3.50 GHz
Performance-core Base Frequency2.50 GHz
Efficient-core Base Frequency1.80 GHz
Cache 24 MB Intel® Smart Cache
Total L2 Cache11.5 MB
Processor Base Power 65 W
Maximum Turbo Power 154 W
Supplemental Information
Marketing StatusLaunched
Launch Date Q1'23
Embedded Options Available Yes
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
ECC Memory Supported ‡ Yes
Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics 770
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.55 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3.0
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡4
Device ID0x4680
Expansion Options
Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread DirectorYes
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ No
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡ Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS GuardYes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
