Fractal Design Terra Silver
Vorige
Fractal Design Terra Graphite
Op voorraad bij leverancier (2-5 werkdagen)

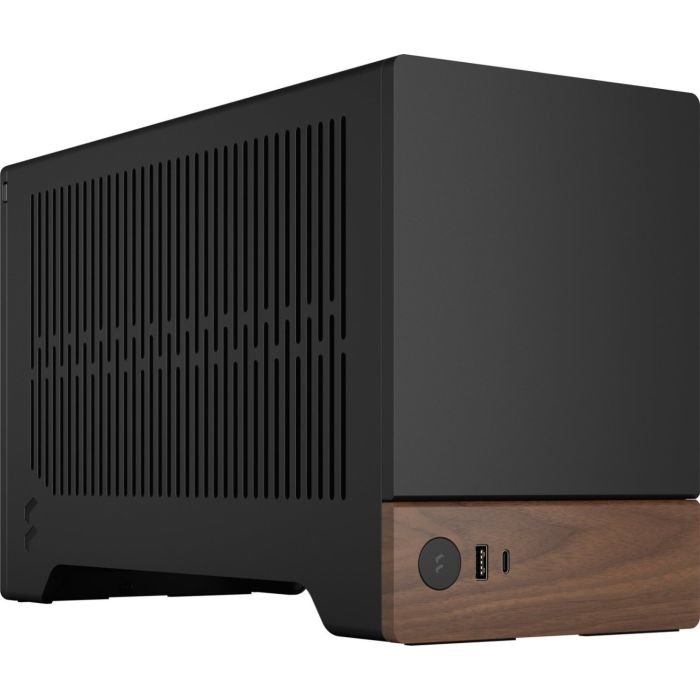

Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 riser cable and features a stepless slidable central wall for build flexibility, providing space for a powerful GPU up to 322 mm in length.
• Install your choice of powerful GPU up to 322 mm in length, in a space-saving 10.4 L case (excluding feet)
• Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
• Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
Specifications
Dedicated 2.5" drive mounts 2 (included)
Expansion slots 3 (Max GPU Mode), 2 (Max CPU-Cooler height mode)
Front interface 1x USB Type-C 20Gbps (USB 3.2 Gen 2x2), 1x USB Type-A 5Gbps (USB 3.0), Power Button
Total fan mounts 1x 120 mm
Bottom fan 1x 120 mm
Tool-less push-to-lock Both side panels and top panel (can also be locked with screws)
Compatibility
Motherboard compatibility mITX
Power supply type SFX-L/ SFX
PSU max length 130 mm
Side radiator 1x 120mm (121 mm wide if max 200 mm GPU and no SSDs)
GPU max length 322 mm
GPU max width (if GPU height is lower than 131 mm) 72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)
GPU max width (if GPU height 131-145mm) 62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)
GPU max height 145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)
*CPU cooler max height 48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler)
*Additional comment
Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info.
Dimensions
Case dimensions (LxWxH) 343 x 153 x 218 mm
Case dimensions w/o feet/protrusions/screws 343 x 153 x 198 mm
Package dimensions (LxWxH) 394 x 215 x 292 mm
Net weight 3.1 kg
Gross weight 4.0 kg
Volume 10.4 liter (excluding feet), 11.4 liter (external dimensions)
Other
Package Contents Case, Accessory box, Manual
| EAN | 7340172703983 |
|---|---|
| Vendor ID | FD-C-TER1N-01 |
| Soort kast | Mini tower |
| Materiaal | Aluminium |
| Aantal 3,5 inch intern | 3 bays |
| Aantal 2,5 inch intern | 2 bays |
| Aantal 5,25 inch extern | Nee |
| Venster in de zijkant | Nee |
| Front USB aansluiting | USB 3.0 / USB 3.1 |
| Form Factor | Mini-ITX |
| Inclusief voeding | Nee |
| Color | Grijs |
