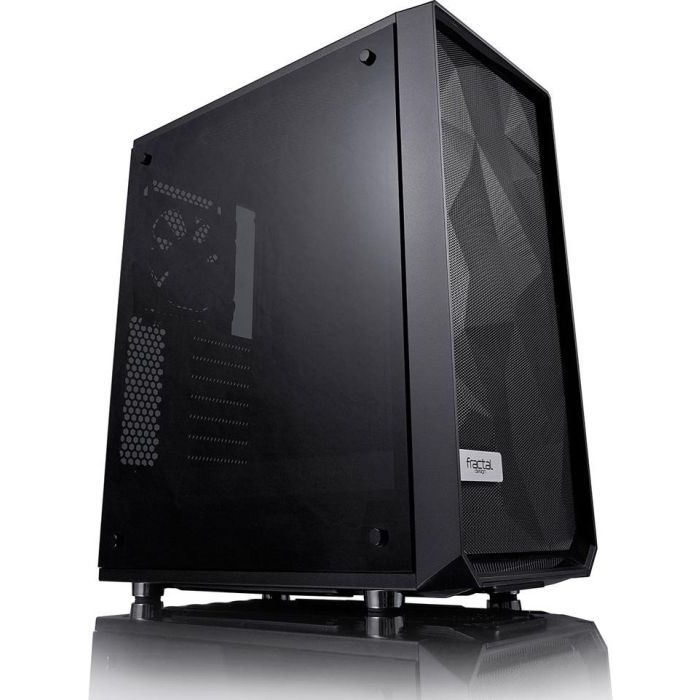

Fractal Design Meshify C Tempered Glass Dark

€114,00
Niet voorradig ( neem contact op voor levertijd ! ) Niet voorradig ( neem contact op voor levertijd ! )
SKU
230193
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look.  Like black diamond facets, the angular asymmetry of the Meshify C carves a space uniquely its own as a new force in high-airflow design.  Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.

An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C has a remarkably compact footprint with the high-end component support of a larger tower, and with seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.

When performance is top priority and compromise is not an option, Meshify has you covered in style.

Key features

  • Streamlined high-airflow design
  • The performance and capacity of a larger tower in a remarkably compact mid-tower size
  • Newly designed angular mesh front panel maximizes air intake
  • Tinted tempered glass side panel for a clean looking exterior with full interior visibility
  • Distinctive new styling with stealthy black-on-black aesthetic
  • Flexible storage options with room for up to 5 drives
  • Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
  • Two pre-installed Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
  • Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
  • Easy-to-clean filters on the front, top, and base with full PSU coverage and convenient front access
  • Full-length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
  • Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing

Specification

 3.5" or 2.5" Drive capacity

2

Dedicated 2.5" drive capacity

3

Expansion slots

7

Motherboard compatibility

ATX, mATX, ITX

Power supply type

ATX

Total fan mounts

7

Front fan

3x 120 or 2x 140 1x Dynamic X2 GP-12 included

Top fan

2x 120/140

Rear fan

1x 120 1x Dynamic X2 GP-12 included

Bottom fan

1x 120

Side fan

No

Dust filters

Bottom fan + PSU Front fans Top fans

Front radiator

120/240/360mm 140/280mm

Top radiator

120/240mm (max component height on motherboard 40mm)

Rear radiator

120mm (max width 125mm)

Power supply depth limit

Maximum 175mm recommended

Graphics card length limit

Max 315mm with front fan mounted

CPU cooler height limit

172mm

Cable routing

15-35mm space

Cable routing grommets

Yes

Fixed velcro straps

Yes

Captive thumbscrews

Right side panel SSD brackets

Left side panel

Tempered Glass

Case dimensions (LxWxH)

395 x 212 x 440mm

Case dimensions - with feet/protrusions/screws

409 x 217 x 453mm

Net weight

6.5 kg

Package dimensions (LxWxH)

543 x 295 x 484mm

Package weight

7.9 kg

Package Contents

  • Meshify C Computer Case
  • User manual
  • Accessory box
  • Top filter
Meer informatie
EAN 7350041084891
Vendor ID FD-CA-MESH-C-BKO-TG
Soort kast Midi tower
Materiaal Staal / Glas
Aantal 3,5 inch intern 2 bays
Aantal 2,5 inch intern 3 bays
Aantal 5,25 inch extern Nee
Venster in de zijkant Ja
Front USB aansluiting USB 3.0
Form Factor ATX
Inclusief voeding Nee
Color Zwart
