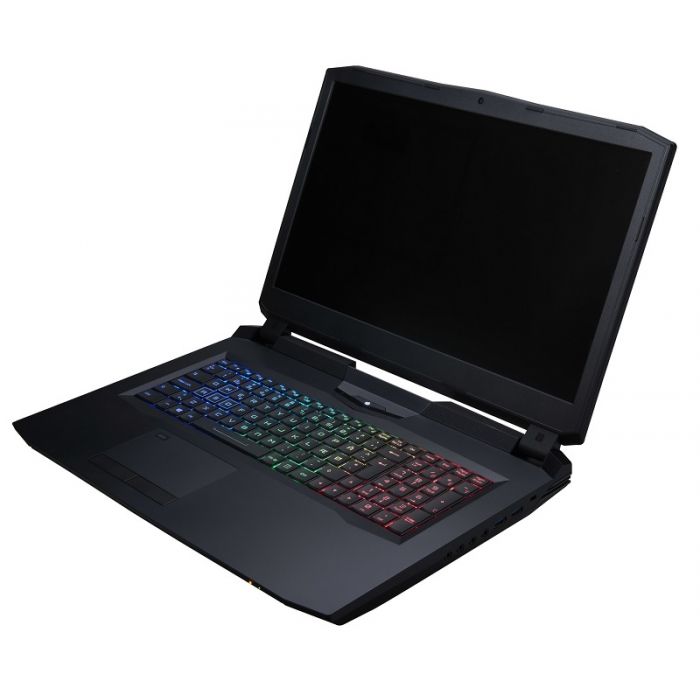

Clevo Notebook 17.3" P775TM1-G 4K GTX 1060/1070/1080

Processor
• Intel® Core™ i7-8700K processor (14nm, 3.7GHz, DDR4 2666MHz, 12MB Smart cache, TDP: 95W)
• Intel® Core™ i7-8700 processor (14nm, 3.2GHz, DDR4 2666MHz, 12MB Smart cache, TDP: 65W)
• Intel® Core™ i5-8600K processor (14nm, 3.6GHz, DDR4 2666MHz, 9MB Smart cache, TDP: 95W)
• Intel® Core™ i5-8400 processor (14nm, 2.8GHz, DDR4 2666MHz, 9MB Smart cache, TDP: 65W)
• Support CPU over clocking depends on CPU SKU (Both of base frequency and ratio) Core Logic
• Intel® Z370 Express Chipset Display • 17.3” (43.94cm) UHD (3840x2160) / QHD (2560x1440) / FHD (1920x1080) 16:9 panel, 4.0mm

Memory
• Dual channel DDR4
• Four 260 pins SODIMM sockets, support DDR4 2400 MHz (Real operation frequency depends on processor)
• Expandable memory from 8GB to 64GB, depends on 4GB/8GB/16GB SODIMM module
• Support XMP 2666/3000 MHz (XMP support depends on processor and works with 4 DIMMs dual channel or 2 DIMMs single channel)

Video Controller
• NVIDIA® GeForce GTX 1080 (N17E-G3) - 8GB GDDR5X Video RAM - Support PCIe x16 - Microsoft DirectX® 12 compatible - GeForce CUDA™ technology - MXM3.0 - NVIDIA® PhysX® - Support 4 active displays - Support NVIDIA® Surround View - GPU over clocking
• NVIDIA® GeForce GTX 1070 OC (N17E-G2 OC) - 8GB GDDR5 Video RAM - Support PCIe x16 - Microsoft DirectX® 12 compatible - GeForce CUDA™ technology - MXM3.0 - NVIDIA® PhysX® - Support 4 active displays - Support NVIDIA® Surround View - GPU over clocking
• NVIDIA® GeForce GTX 1060 OC (N17E-G1 OC) - 6GB GDDR5 Video RAM - Support PCIe x16 - Microsoft DirectX® 12 compatible - GeForce CUDA™ technology - MXM3.0 - NVIDIA® PhysX® - Support 4 active displays - Support NVIDIA® Surround View - GPU over clocking

Storage

• Two changeable 2.5” 7mm/9.5mm(H) SSD/HDD, SATA interface (RAID 0/1)
• (Factory Option) Two M.2 2280 SSD SATA/PCIe Gen3x4 interface (RAID 0/1)

Audio
• High Definition Audio
• S/PDIF digital output
• Built in array microphone
• Built in two speakers
• Built in one subwoofer speaker
• Sound BlasterX® Pro-Gaming 360˚
• ESSTM SABRE HiFi DAC for high resolution headphone audio
• External 7.1CH audio output supported by 2-in-1 Audio, Microphone, Line-in and Line-out jacks

Keyboard and Pointing Device
• Multi languages full color illuminated full size keyboard with numeric pad and anti-ghost keys
• Built in Secure pad with Microsoft PTP multi-gesture and scrolling function
• W/A/S/D gaming key

I/O ports
• 4 x USB 3.0 ports (USB3.1 Gen1) (1 x powered USB port, AC/DC)
• 1 x USB 3.1 Gen2 port (Type-C)
• 1 x USB 3.1 Gen2 / ThunderboltTM 3 combo port (Type-C)
• 2 x Mini DisplayPort 1.3
• 1 x HDMITM output port (with HDCP)
• 1 x 2-in-1 Audio jack (Heandphone / S/PDIF optical output)
• 1 x Microphone jack
• 1 x Line-out jack
• 1 x Line-in jack
• 1 x RJ-45 LAN port
• 1 x DC-in jack

Card Reader
• 6-in-1 Push-Push Card reader - MMC / RSMMC - SD / mini SD / SDHC / SDXC up to UHS-ll
Slot
• Three M.2 card slots -1st for WLAN Combo M.2 2230 Card with PCIex2 and USB interface (A key) -2nd for SSD M.2 2280 Card with SATA / PCIe Gen3x4 interface (M key) -3rd for SSD M.2 2280 Card with SATA / PCIe Gen3x4 interface (M key)

Communication
• Built in Qualcomm® 10/100/1000Mb Base-TX Ethernet LAN
• (Factory Option) Intel® Dual Band Wireless-AC 8265, 2x2 AC +BT M.2 2230 (Windstorm Peak)
• (Factory Option) Qualcomm® Atheros Killer™ Wireless-AC 1535 Dual Band 2x2 AC +BT M.2 2230
• (Factory Option) Wireless LAN 802.11AD + Bluetooth v4.1 Combo M.2 2230 Card module
• 2.0M FHD video camera

Power Supply
• Full Range AC adapter, AC in 100~240V, 50~60Hz, DC output 19.5V, 16.9A, 330W
• Removable 8 cells Smart Lithium-lon battery pack, 82WH
• Battery life: 180 minutes (with NVIDIA® GeForce GTX 1060 OC, 82WH Battery)

Security
• Security (Kensington® Type) Lock Slot • Area fingerprint
•TPM 2.0

Others Design
• Shipping Mode • FlexiCharger • Virtual Reality ready supported with processor i7/i5 • Support Windows®10 Cortana with Voice • Killer DoubleShotTM Pro with KillerTM Wireless-AC 1535 module • NVIDIA® G-SYNCTM Technology • Intel® OptaneTM Technology • (Factory Option) USB drive OS Support • Windows®10 (64-bit) Certificate • Windows®10 (64-bit) Logo • HDMITM Logo Dimension • 418(W) x 295.3(D) x 40.9(H) mm Weight • 3.9Kg, Including Barebone, VGA card and 82WH Battery (with FHD Panel) • 4.3Kg, Including Barebone, VGA card and 82WH Battery (with UHD Panel)
