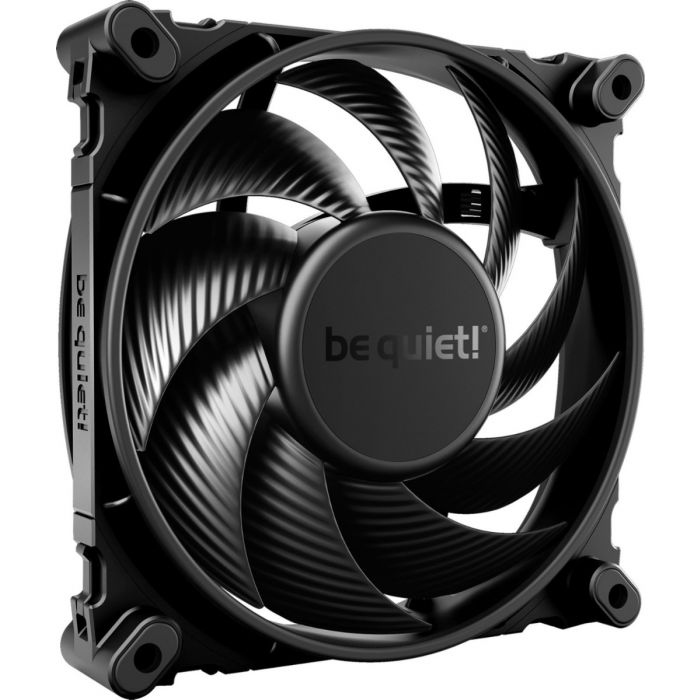

be quiet! Silent Wings 4 PWM 120mm
€29,00
Op voorraad bij leverancier (2-5 werkdagen)
SKU
410752
Silent Wings 4 120mm PWM combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.
- Optimized fan blades for the highest performance on heat sinks
- Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
- Virtually inaudible operation at regular speed
- 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
- Anti-vibration mounting with push pins and screwed installation option
- Super-long lifespan of up to 300,000h
- Elegant look with high-grade fan sticker in an all-black design
- 5-year manufacturer warranty
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
General data
| Model | Silent Wings 4 120mm PWM |
| Dimensions (mm) | 120 |
| Fan speed @ 100% PWM / 12V (rpm) | 1600 |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 48.7 / 82.74 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 1.79 |
| Lighting | - |
| Noise level @ 100% PWM / 12V (dB(A)) | 18.9 |
| Color option | Black |
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Weight incl. fixed cables (kg) | 0.190 |
| Push pin fixing | ✓ |
| Screw fixing | ✓ |
Cables / Connectors
| Y-cable for lighting signal | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | ✓ |
Performance / Noise
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 48.7 / 82.74 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 1.79 |
| Noise level @ 100% PWM / 12V (dB(A)) | 18.9 |
| Lifespan (h / 25°C) | 300,000 |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.12 |
| Safety current (A) | 0.13 |
| Input power (W) | 1.44 |
| Rated Current LED (A) | - |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | 4 |
| hard plastic washer | - |
| Others | Rubber & hard plastic mountings |
Safety certification
| Approvals | CE / RoHs / RU / UKCA / TÜV / WEEE |
Service
| Warranty (Years) | 5 |
| International hotline / free of charge | ✓ / DE, FR |
| EAN | 4260052188859 |
|---|---|
| Vendor ID | BL093 |
| Verlichting | Geen |
| Afmeting | 120 mm |
| CFM ( Airflow ) | 40 - 50 CFM |
| Fan Decibel MAX | < 20 dB |
| Toeren/minuut | Variabel (pwm) |
| Fan controller | Nee |
