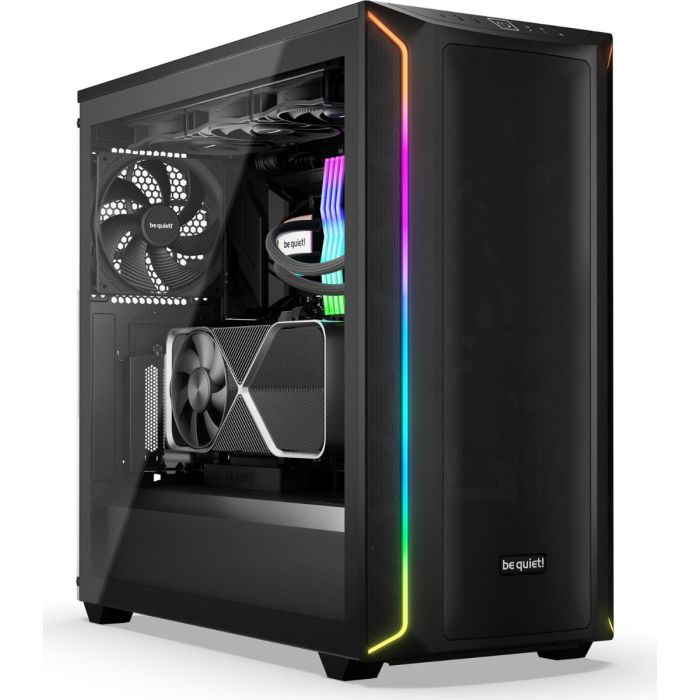

be quiet! Shadow Base 800 DX Black

General data
Model    Shadow Base 800 DX Black
Color option    Black
Motherboard compatibility    E-ATX / ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm)    550 x 247 x 503
Case size incl. stands (L x W x H), (mm)    550 x 247 x 522
Volume (l)    62.74
PSU form factor    ATX PS/2
Weight (kg)    11.8
Expansion slots    7

Pre-installed fans
Fan at top    1x Pure Wings 3 140mm PWM
Fan at front    1x Pure Wings 3 140mm PWM
Fan at side    -
Fan at rear    1x Pure Wings 3 140mm PWM
Fan at bottom    -
Dimensions (L x W x H), (mm)    Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm)    1200
Airflow at 100% PWM / 12V (CFM / m3/h)    57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O)    0.96
Noise level at 100% PWM / 12V (dB(A))    21.9
Voltage range (V DC)    5 - 13.2
Input power (W)    3.6
Input current (A)    0.3
Connector    4-pin PWM
Lifespan (h / 25°C)    80,000
Fan controller    -
Maximum fan installation
Maximum fans    8
Top (mm)    3x 140 / 3x 120
Front (mm)    3x 140 / 3x 120
Side (mm)    -
Rear (mm)    1x 140 / 1x 120
Bottom (mm)    1x 140 / 1x 120
PSU shroud    -
Optional radiator installation
Top (mm)    120 / 140 / 240 / 280 / 360 / 420
Front (mm)    120 / 140 / 240 / 280 / 360 / 420
Side (mm)    -
Rear (mm)    120
Bottom (mm)    -
PSU compatibility
Maximum dimensions excl. bottom fan (mm)    305
Maximum dimensions incl. bottom fan (mm)    260
Graphics card
HDD cage (in height of graphics card) installed (mm)    430
HDD cage (in height of graphics card) removed (mm)    430
Maximum PCIe slots with vertical graphics card (pcs.)    7
Drive bay capacity
5.25 bays (pcs.)    -
3.5 slots (scope of delivery)    2
3.5 slots (max.)    4
2.5 slots (scope of delivery)    4
2.5 slots (max.)    8
Cooling
Max.construction height of CPU cooler unit (mm)    180
Airflow channel    Front / Top / Rear / Bottom
Lighting
LED illumination    Yes
LEDs (pcs.)    40
LED type    ARGB - 5V
LEDs synchronizable with controller/motherboard    ✓
I/O Panel
USB 3.2 Gen. 2 Type C    1
USB 3.2 Type A    2
USB 2.0    -
HD Audio I/O    Mic + Audio
Qi charger / Quick Charging Option    -
Insulation and damping
Top panel insulation mats    -
Front panel insulation mats    -
Side panel insulation mats    ✓
Anti-vibration decoupled HDD    ✓
Anti-vibration decoupled fan    ✓
Anti-vibration decoupled PSU    ✓
Anti-vibration decoupled motherboard-tray    -
Removeable dust filters
Top    -
Front    1
Side    -
Bottom    1
Material
Top cover    ABS
Front panel    ABS
Side panel    Steel
Side panel window    4mm Tempered Glass
Stands    ABS
Safety certification
Approvals    CE, UKCA
Environmental directives
RoHS    ✓
Reach    ✓
WEEE    ✓
Triman    ✓
Scope of delivery
Screw set (Drives/Motherboard)    ✓
Additional standoffs (pcs.)    -
SSD bracket for PSU shroud    -
LED strips (pcs.)    -
Cable ties (pcs.)    6 (Velcro) / 4 (Velcro)
Screw box    -
VGA holder    -
VGA holder for inverted layout    -
Mesh Front Panel    -
ODD Bracket    -
Fan / Radiator bracket for multi mounting panel    -
Service
Warranty (Years)    3
International hotline / free of charge    ✓ / DE, FR
