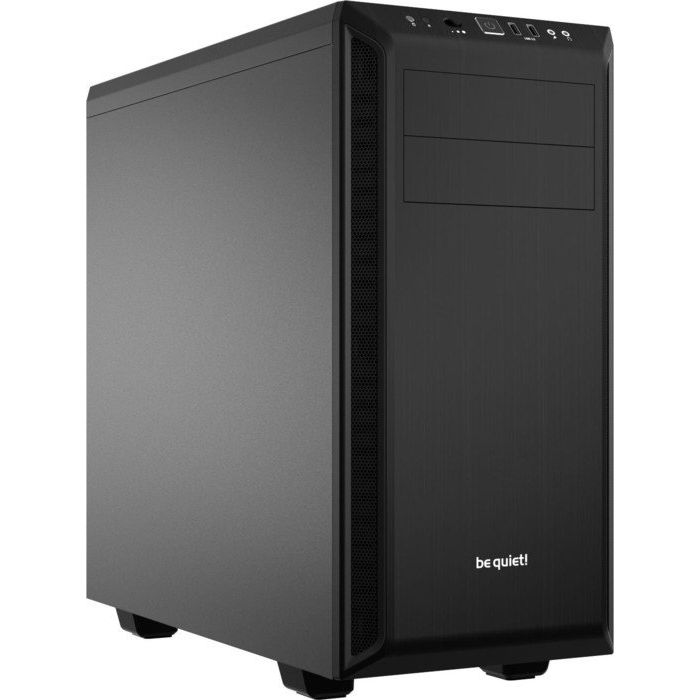

Be quiet! Pure Base 600 Black

€87,00
Op voorraad bij leverancier (2-5 werkdagen) Op voorraad bij leverancier (2-5 werkdagen)
SKU
w1301672
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Pure Base 600 is truly multi-talented, offering a great deal of functionality and features for an attractive price. This case sets new standards in its performance class with high installation flexibility and effective cooling performance.
Smart usability features and whisper-quiet operation enable you to realize almost any system configuration you desire for your ATX or micro ATX PC. It’s simply the perfect base to build your system on.

  • Highly versatile construction with repositionable HDD slots and a removable ODD cage
  • Optimized for liquid cooling with three specially designed areas of up to 360mm to add water cooling radiators
  • Adjustable top cover vent that can be closed for absolute silence, partially open for more air exhaust or fully open, with the added possibility to mount a radiator
  • Whisper-quiet operation thanks to two pre-installed Pure Wings 2 fans featuring nine airflow-optimized fan blades that reduce turbulence while increasing the air pressure
  • Completely sound insulated with integrated dampening material on top, side and front
  • Professional cable management is adaptable with extensive cable routing options
  • Product conception, design and quality control in Germany

General

Model
PURE BASE 600 | BLACK

General Data

PSU form factor
ATX PS/2
Motherboard compatibility
ATX, M-ATX, Mini-ITX
Installation of motherboards with backplate
Case size excl. stands (L x W x H), (mm)
492 x 220 x 445
Case size incl. stands (L x W x H), (mm)
492 x 220 x 470
Dimensions side panel window (L x W), (mm)
-
Color option
Black
Weight (kg)
7.44
USB 2.0
-
USB 3.0
2
HD Audio I/O
1
Expansion slots
7
Fan mounting locations
7
Qi charger
-
RGB LED illumination
-

Material

Top Cover
ABS Plastic
Side panel
Steel
Side panel window
-
Front panel
ABS Plastic
Stands
ABS Plastic

Drive Bay Capacity

5.25
2
3.5
3
2.5
8

HDD Cage Specifications

HDD cages total
3
Cage capacity (HDDs)
1
Removable HDD cage
3
Relocatable HDD cage
3

Pre-installed Fans

Fan @ front
1x be quiet! Pure Wings 2 |140mm / 900rpm
Fan @ rear
1x be quiet! Pure Wings 2 |120mm / 1,200rpm
Dimensions (L x W x H), (mm)
Front: 140 x 140 x 25, Rear: 120 x 120 x 25
Fan speed @ 12V (rpm)
Front: 900, Rear: 1,200
Noise level @ 12V (dB(A))
Front: 17.1, Rear: 16.8
Air flow @ 12V (cfm / m3/h)
Front: 55.8 / 94.80, Rear: 41.7 / 70.84
Air pressure @ 12V (mm H2O)
Front: 0.6, Rear: 0.9
Voltage range (V DC)
5–12
Input power (W)
Front: 1.08, Rear: 1.04
Input current (A)
0.09
Connector
3-pin
Lifespan (h / 25°C)
80,000
Fan controller
Manual 3-step fan controller (3x 3-pin)

Optional Fan Installation

Front (mm)
1x 120 / 1x 140
Top (mm)
2x 140 / 3x 120
Bottom (mm)
-
Side panel (mm)
-

Optional Radiator Installation

Front (mm)
120, 140, 240, 280, 360
Top (mm)
120, 240, 360
Bottom (mm)
-
Rear (mm)
120

Cooling

Max.construction height of CPU cooler unit (mm)
up to 165
Airflow channel
Front, Top Cover

PSU Compatibility

Maximum dimensions excl. bottom fan (mm)
210
Maximum dimensions incl. bottom fan (mm)
210

Graphics Card

HDD cage (in height of graphics card) installed (mm)
280
HDD cage (in height of graphics card) removed (mm)
425

Insulation and Damping

Top panel insulation mats
Front panel insulation mats
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
-
Anti-vibration decoupled PSU
Anti-vibration decoupled motherboard-tray
-

Removable Dust Filters

Front
1
Bottom
1
Side panel
-

Accessories

Screw set (HDD/SSD/MB-mounting)
Rubber rail (pcs.)
-
Standoff (pcs.)
-
LCS bracket (pcs).
-
Upper fan bracket (pcs.)
-
HDD panel rubber grommet (pcs.)
-
LED strips (pcs.)
-
Cable ties (pcs.)
4
Cable tie holder (pcs.)
-

Service

Warranty (Years)
3
International hotline / free of charge
✓ / DE, FR

Logistics Data, RRP

Range
Pure Base 600
Article number
BG021
EAN code
4260052185414
Certifications
CE, RoHS
Dimensions, package (L x W x H), (mm)
517 x 288 x 568
Gross weight, package (kg)
8.74
Meer informatie
EAN 4260052185414
Vendor ID BG021
Soort kast Midi tower
Materiaal Staal / Plastic
Aantal 3,5 inch intern 3 bays
Aantal 2,5 inch intern 8 bays
Aantal 5,25 inch extern 2 bays
Venster in de zijkant Nee
Front USB aansluiting USB 3.0
Form Factor ATX
Inclusief voeding Nee
Color Zwart
