be quiet! Pure Base 501 LX White
Op voorraad bij leverancier (2-5 werkdagen)

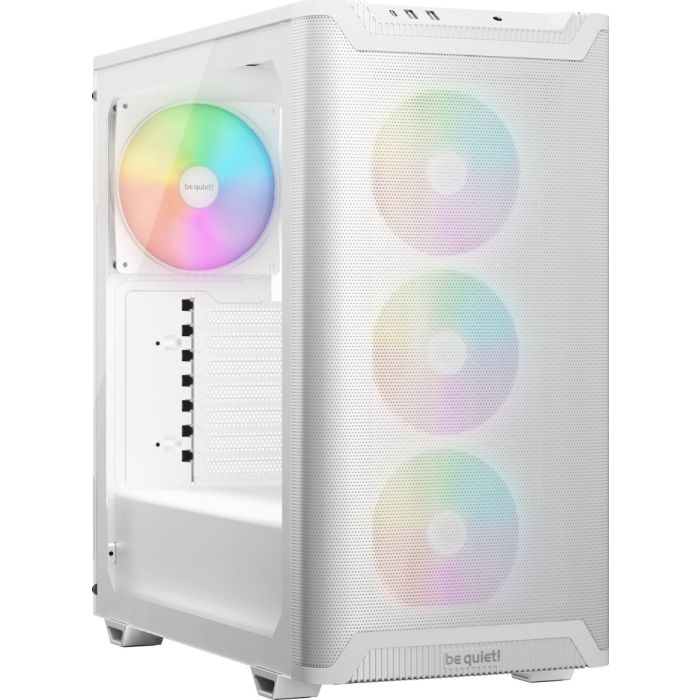

Pure Base 501 LX White is an impressively versatile be quiet! ATX case with ARGB fans, compact dimensions and high airflow for any application.
High airflow intake front panel and top cover for maximum performance
4 preinstalled Light Wings LX PWM White fans for unmistakable lighting effects and extraordinary air pressure
ARGB controller and ARGB-PWM hub for 6 fans
Generous space for high-end graphics cards and large coolers, despite compact footprint
Optional vertical graphics card installation
Water cooling ready for radiators up to 360mm
Comfortable cable management with clever cable routing design
Side panel made of tempered glass
General data
Model Pure Base 501 LX White
Color option White
Motherboard compatibility ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm) 450 x 231 x 449
Case size incl. stands (L x W x H), (mm) 450 x 231 x 463
Volume (l) 39.2
PSU form factor ATX PS/2
Net weight (kg) 7.9
Expansion slots 7
Pre-installed fans
Fan at top -
Fan at front 3x Light Wings LX 120mm PWM White
Fan at side -
Fan at rear 1x Light Wings LX 140mm PWM White
Fan at bottom -
Dimensions (L x W x H), (mm) Front: 120 x 25 x 120 / Rear: 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm) 1600 / 1200
Airflow at 100% PWM / 12V (CFM / m3/h) 51.5 / 87.5 | 56.0 / 95.0
Air Pressure at 100% PWM / 12V (mm H2O) 1.34 / 0.90
Noise level at 100% PWM / 12V (dB(A)) 25.5 / 22.9
Voltage range (V DC) 5 - 13.2
Input power (W) 3.8 / 3.6
Input current (A) 0.10 / 0.09
Connector 4-pin PWM
Lifespan (h / 25°C) 60,000
Fan controller -
Maximum fan installation
Maximum fans 6
Top (mm) 2x 140 / 2x 120
Front (mm) 2x 140 / 3x 120
Side (mm) -
Rear (mm) 1x 140 / 1x 120
Bottom (mm) -
PSU shroud -
Optional radiator installation
Top (mm) 120 / 240
Front (mm) 120 / 140 / 240 / 280 / 360
Side (mm) -
Rear (mm) 120 / 140
Bottom (mm) -
PSU compatibility
Maximum dimensions excl. bottom fan (mm) 200
Maximum dimensions incl. bottom fan (mm) 180
Graphics card
HDD cage (in height of graphics card) installed (mm) 368
HDD cage (in height of graphics card) removed (mm) 368
Maximum PCIe slots with vertical graphics card (pcs.) 5
Drive bay capacity
5.25 bays (pcs.) -
3.5 slots (scope of delivery) 2
3.5 slots (max.) 2
2.5 slots (scope of delivery) 5
2.5 slots (max.) 5
Cooling
Max.construction height of CPU cooler unit (mm) 178
Airflow channel -
Lighting
LED illumination -
LEDs (pcs.) -
LED type -
LEDs synchronizable with controller/motherboard -
I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option (W) -
Insulation and damping
Top panel insulation mats ✓
Front panel insulation mats -
Side panel insulation mats ✓
Anti-vibration decoupled HDD ✓
Anti-vibration decoupled fan ✓
Anti-vibration decoupled PSU ✓
Anti-vibration decoupled motherboard-tray ✓
Scope of delivery
Screw set (Drives/Motherboard) ✓
Additional standoffs (pcs.) 1
SSD bracket for PSU shroud -
LED strips (pcs.) -
Cable ties (pcs.) 12
Screw box -
VGA holder -
VGA holder for inverted layout -
Mesh Front Panel -
ODD Bracket -
Fan / Radiator bracket for multi mounting panel -
Removeable dust filters
Top 1
Front 1
Side -
Bottom 1
Material
Top cover Steel
Front panel ABS
Side panel Steel
Side panel window Glass
Stands ABS
Safety certification
Approvals CE, UKCA
Environmental directives
RoHS ✓
Reach -
WEEE ✓
Triman ✓
Service
Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR, US
Logistics data and RRP
Article number BGW79
EAN code 4260052192863
Dimensions, package (L x W x H), (mm) 518 x 292 x 503
Gross weight, package (kg) 9.1
| EAN | 4260052192863 |
|---|---|
| Vendor ID | BGW79 |
| Soort kast | Midi tower |
| Materiaal | Staal / Glas |
| Aantal 3,5 inch intern | 2 bays |
| Aantal 2,5 inch intern | 5 bays |
| Aantal 5,25 inch extern | Nee |
| Venster in de zijkant | Ja |
| Front USB aansluiting | USB 3.0 / USB 3.1 |
| Form Factor | ATX |
| Inclusief voeding | Nee |
| Color | Wit |
