ASRock Z790 PG Sonic Vorige ASRock Z790 PG Sonic
main product photo

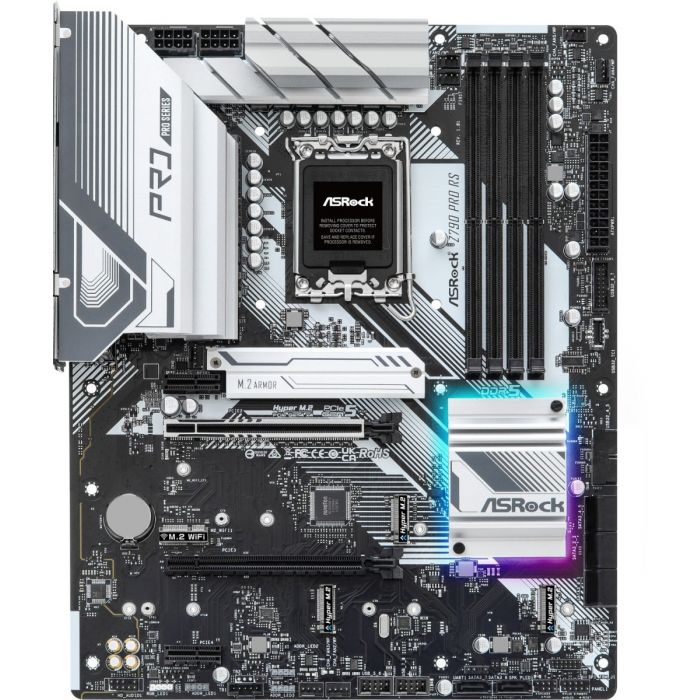

ASRock Z790 Pro RS

€219,00
Op voorraad bij leverancier (2-5 werkdagen) Op voorraad bij leverancier (2-5 werkdagen)
SKU
sk200806
  • Supports 13th Gen & 12th Gen Intel® Core™ Processors
  • 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
  • 4 x DDR5 DIMMs, supports up to 6800+(OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
  • Realtek 2.5G LAN
Voeg toe aan je wensenlijst Vergelijk
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
    • Unique Feature
      Superb Productivity
      - PCIe Gen5 (Graphics)
      - Dual Channel DDR5
      Rock-Solid Durability
      - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
      - Flexible Integrated I/O Shield
      Ultrafast Connectivity
      - 2.5G LAN
      EZ Update
      - ASRock Auto Driver Installer
      EZ Troubleshooter
      - ASRock Post Status Checker
    • CPU
      - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
      - Supports Intel® Hybrid Technology
      - Supports Intel® Turbo Boost Max 3.0 Technology
      - Supports Intel® Thermal Velocity Boost (TVB)
      - Supports Intel® Adaptive Boost Technology (ABT)
    • Chipset
      - Intel® Z790
    • Memory
      - Dual Channel DDR5 Memory Technology
      - 4 x DDR5 DIMM Slots
      - Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
      - Max. capacity of system memory: 128GB
      - Supports Intel® Extreme Memory Profile (XMP) 3.0

      *1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
      1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
      2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
      2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
    • BIOS
      - 128Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      - Intel® Xe Graphics Architecture (Gen 12)
      - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
      - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
      - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

      *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    • Audio
      - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      - Nahimic Audio
    • LAN
      - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
      - Dragon RTL8125BG
      - Supports Dragon 2.5G LAN Software
      - Smart Auto Adjust Bandwidth Control
      - Visual User Friendly UI
      - Visual Network Usage Statistics
      - Optimized Default Setting for Game, Browser, and Streaming Modes
      - User Customized Priority Control



  • Slots
    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*
    Chipset:
    - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
    - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

    - Supports AMD CrossFire™

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 8 x SATA3 6.0 Gb/s Connectors

    *Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
  • USB
    - 1 x USB 3.2 Gen2x2 Type-C (Front)
    - 1 x USB 3.2 Gen2 Type-C (Rear)
    - 1 x USB 3.2 Gen2 Type-A (Rear)
    - 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
    - 8 x USB 2.0 (4 Rear, 4 Front)

    *All USB ports support ESD Protection
  • Connector
    - 1 x eDP Signal Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~5/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    - 2 x USB 3.2 Gen1 Ports
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 2 x SATA Data Cables
    - 5 x Screws for M.2 Sockets
    - 1 x Standoff for M.2 Socket
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - 2oz Copper PCB
  • OS
    - Microsoft® Windows® 10 64-bit / 11 64-bit

    *Windows® 10 only supports version 21H2 or later
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)





Meer informatie
EAN 4710483940767
Vendor ID 90-MXBK40-A0UAYZ
Form Factor ATX
Socket Intel 1700
Type Geheugen DDR5
PCIe 3.0 Nee
PCIe 4.0 1x
PCIe 5.0 1 slot
VGA onboard Ja, via processor
SLI / Crossfire Geen SLI/Crossfire
Aantal sata poorten 8 poorten
M.2-Slot 4x
USB 3.0 2X USB 3.0
USB 3.1 2X USB 3.1
Bluetooth/Wifi Nee
Thunderbolt Nee
Minstens 2 jaar carry in garantie

Bij ons krijgt u altijd de fabrieksgarantie, dat kan variëren van 2, 3, 5 tot 10 jaar of soms lifetime* garantie van de fabrikant !

Notebook en monitor fabrikanten hanteren vaak een ophaal en retour service.

Bewaar altijd de verpakking van het product, op die manier gaat de afhandeling vele malen sneller!
En bent u niet verantwoordelijk voor enige transportschade wegens ondeugdelijke verpakking.



* Lifetime = Zo lang het product gefabriceerd wordt bij de fabrikant.
