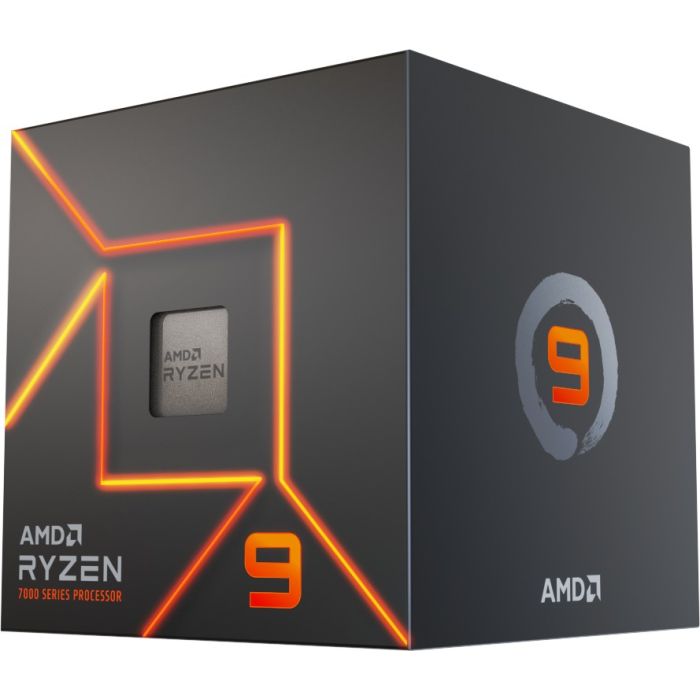

AMD Ryzen 9 7900 / 3.7 GHz
Op voorraad bij leverancier (2-5 werkdagen)
General Specifications
Platform Desktop
Market Segment Enthusiast Desktop
Product Family AMD Ryzen™ Processors
Product Line AMD Ryzen™ 9 Processors
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global, China, NA, EMEA, APJ, LATAM
Former Codename "Raphael AM5"
Architecture "Zen 4"
# of CPU Cores 12
Multithreading (SMT) Yes
# of Threads 24
Max. Boost Clock Up to 5.4GHz
Base Clock 3.7GHz
L1 Cache 768KB
L2 Cache 12MB
L3 Cache 64MB
Default TDP 65W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm²
I/O Die (IOD) Size 122mm²
Package Die Count 3
Unlocked for Overclocking Yes
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets X670E,X670 ,B650E ,B650
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) AMD Wraith Prism
Max. Operating Temperature (Tjmax) 95°C
Launch Date 1/14/2023
*OS Support Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support Yes
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 1
Native SATA Ports 0
PCI Express® Version PCIe® 5.0
Native PCIe® Lanes (Total/Usable) 28/24
Additional Usable PCIe Lanes from Motherboard
AMD X670E 12x Gen4
AMD X670 12x Gen4
AMD B650E 8x Gen4
AMD B650 8x Gen4
NVMe Support Boot, RAID0, RAID1, RAID10
System Memory Type DDR5
Memory Channels 2
Max. Memory 128GB
System Memory Subtype UDIMM
Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics Yes
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
GPU Base 400 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes
Product IDs
Product ID Boxed 100-100000590BOX
Product ID Tray 100-000000590
Key Features
Supported Technologies
AMD EXPO™ Technology
AMD Ryzen™ Technologies
| EAN | 0730143314466 |
|---|---|
| Vendor ID | 100-100000590BOX |
| Socket | AMD AM5 |
| Aantal Cores | 12 Core |
| Geïntegreerde graphics | Ja |
